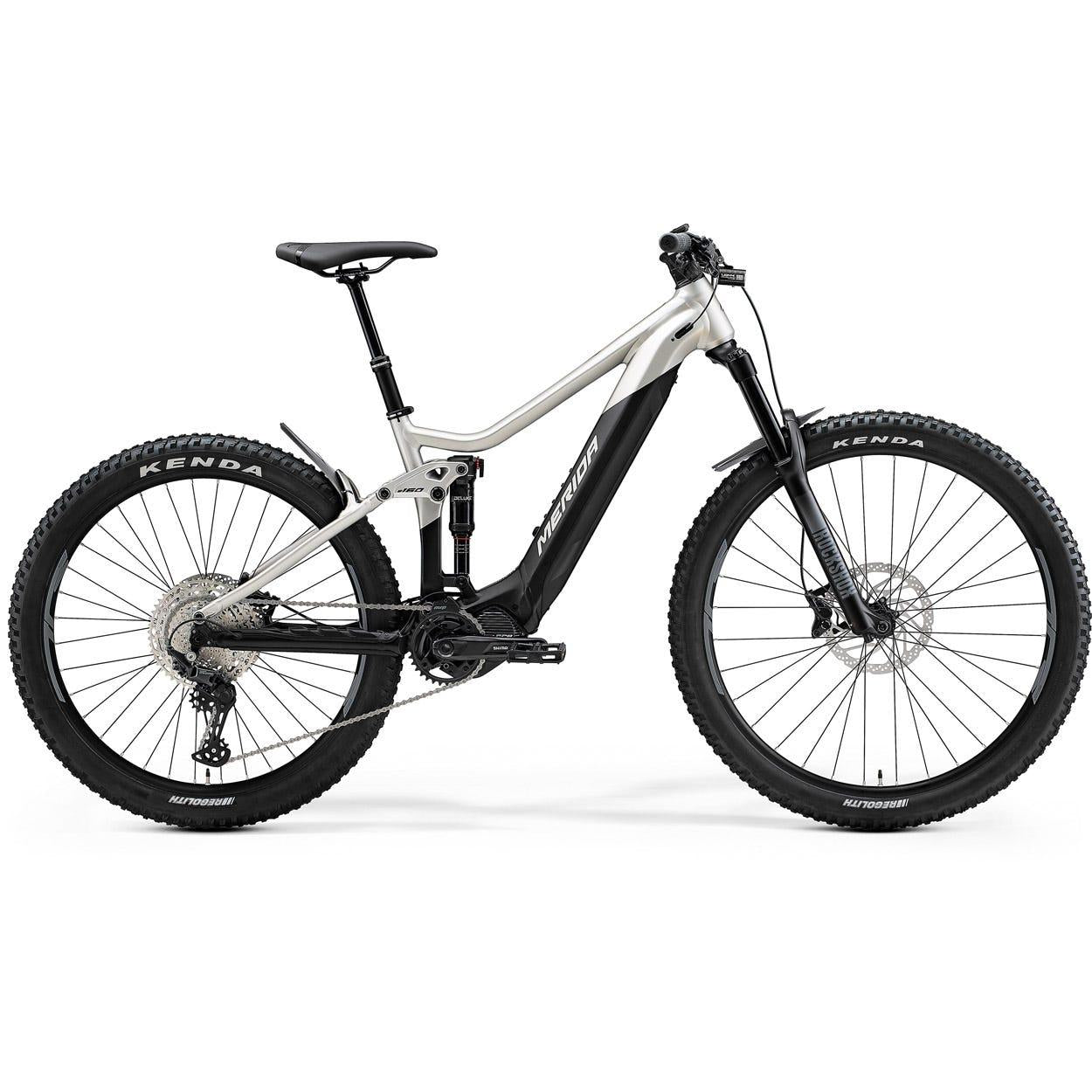

Merida eOne Sixty 500 Electric Mountain Bike Matt Titan Black (2021)

Out of stock
Additional Gold discount does not apply for this product.
Request a Price Beat

Up to 12 months interest free

Features

Perfect Ride Guarantee

Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Service

First Free Tune-up
Every bike come with a complimentary free tune-up and safety check.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.

KEY FEATURES

Merida eOne Sixty 500

  • Shimano EP8 Drive Unit - 85Nm
  • Shimano E8036 - 630Wh Battery
  • Alloy Frame
  • Rock Shox 35 Gold RL Fork - 160mm Travel
  • Rock Shox Deluxe Select+ Rear Shock - 150mm Travel
  • Shimano M4100 Hydraulic Disc Brakes

Review

"The eOne-Sixty is the 160/155mm travel option, which features a mullet wheelsize setup with a 29x2.5in tyre up front and a 27.5x2.6in tyre out back. Travel and geometry remain the same as the 2020 version and for less than seven grand, the eOne-Sixty 500 still gets you a Shimano EP8 motor, 630Wh battery, Shimano 12 speed drivetrain and RockShox air-sprung suspension."

Flow Mountain Bike

The Merida eOne Sixty 500 is a dual suspension e-bike loaded with advanced Shimano STePS e-bike technology which is built to get you to the top with ease, yet still has the capability to really let it rip on the downhill. The eOne Sixty is equipped with a performance focused alloy frame with an in-tube Shimano E8036 630Wh Battery (E8035 - 504Wh Battery for XS Size) integrated into the frame for a clean look and balanced feel. The 630Wh offers 25% increase in capacity over the older 504Wh model, matched with the brand new Shimano EP8 Motor which replaces the older E8000 motor. It also packs a bigger punch with 85 Nm and is also lighter by 300 grams for a swift ride. It has an 'internal block' built right into the frame, which prevents the fork crown from hitting the frame when you crash, as well as the addition of extra rubber bumpers on the frame to avoid any frame damage from the fork crown

You know that the e-bike components on this bike are awesome, but so is the rest of the spec on this bike. The RockShox 35 Gold RL Fork brings 160mm travel to tame the trails and help give this bike some punchy personality. The Shimano Deore shifters and rear derailleur offer smooth shifting, while the Shimano M4100 Hydraulic Disc Brakes give you all of the stopping power to control this beast and ride with confidence. Add to that the hand picked Kenda Regolith 29x2.4"Front Tyre/ 27.5x2.6" Rear Tyre combination to ensure that this heavier full suspension e-bike offers precision, playfulness, and traction on the trails. It's all finished off with a Merida Comp TR Dropper Post so that you can get out of your seat and really let it rip.

The 500 is a decent improvement over the entry-level Merida eOne Sixty 300 S, upgrading the suspension from Suntour to a RockShox 35 Gold RL/Deluxe Select + combination as well as the added benefit of the brand new Shimano EP8 Drive Unit - which is well worth the upgrade. When all is considered, the Merida eOne Sixty 500 is an extremely capable bike with reliable Shimano e-bike components that will do the hard work for you so that you can enjoy the best aspects of mountain biking.

Shimano EP8

Comes equipped with the new EP8 motor from Shimano STePS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.

Clever Wheels

To give the e-full suspension bikes precise steering, fantastic rolling over obstacles, yet offering maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction. process.

Internal Block

First introduced in 2015, the e-bike version of the 'Internal Block' is incorporated directly into the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

More Information
SKU 21MeridaeOneSixty500MattTitanBlack
Season 2021
Click & Collect Yes
Wheel Size 29" / 27.5"
Frame Material Alloy
Groupset Brand Shimano
Groupset Shimano Deore
Cassette Type 11 Speed
Fork Brand RockShox
Chainset Type Single
Brake Type Hydraulic Disc Brake
Front Travel 160mm
Battery Shimano E8036; 630Wh
Bottom Bracket included
Brakes Shimano M4100; 4 piston
Brake Levers Shimano Deore
Cassette Shimano M5100; 11-51 ATC; 11 speed
Chain HG601-11
Crankset Shimano FCEM600; 165 mm for all sizes
Derailleur Rear Shimano Deore RDM5100 11
Display Shimano SC-E5003
Motor/Drive Unit Shimano EP8; 85Nm
Fork Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset
Frame eONE-FS LITE III; MAT aluminium; 150 STR; 29/27.5" WHS; 148x12 AST; intube;
Grips MERIDA Expert EC
Handlebar MERIDA Expert eTR; 780 Wide; 20 Rise
Hubs Shimano MT400-B; 148x12 WHR; 36 SPH; Centerlock
Pedals VP; VPE-537
Rims MERIDA COMP TR; 29 IWR; MAT aluminium
Saddle MERIDA Comp CC; V-mount
Seatpost MERIDA COMP TR; 30.9 DSP; 0 SSB; XS 100 SPT - S/M 125 SPT - L/XL 150 SPT
Stem MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
Spokes Black stainless
Shifters Shimano Deore M5100 11
Tyres F: Kenda Regolith; 29x2.4"; wire, R: Kenda Regolith; 27.5x2.6"; wire
Speeds 1 x 11
Sizing SKUs XS: MEEB2168833, SM: MEEB2168844, MD: MEEB2168855, LG: MEEB2168866, XL: MEEB2168877
Motor Brand Shimano
Motor Model STePS EP8
Motor Torque (Nm) 85 Nm
Motor Torque (Nm) 80-89 Nm
Battery Brand Shimano
Battery Model STePS E8035
Battery Size (Watt-Hours) 504 W-h
Battery Size 500-549 W-h
Charge Time (Hours) 5 hrs
Assist Modes 4 Modes

Merida One Sixty Sizing Chart

Rider's Height (cm)
150
155
160
165
170
175
180
185
190
195
200
XS
SM
MD
LG
XL

Electric Dual Suspension Mountain Bike Geometry Diagram

Legend

ST Seat Tube

TT Top Tube

CS Chain Stay Length

HTA Head Tube Angle

STA Seat Tube Angle

BD Bottom bracket Drop

HT Head Tube

FL Fork Length

R Reach

S Stack

WB Wheel Base

Size

SM MD LG XL XS
Wheel Size 29" / 27.5" 29" / 27.5" 29" / 27.5" 29" / 27.5" 29" / 27.5"
Frame Size 42 43 45 47 41
ST Seat Tube (mm) 415.0 430.0 450.0 470.0 405.0
TT Top Tube (mm) 584.0 605.0 626.0 647.0 563.0
CS Chain Stay Length (mm) 439.5 439.5 439.5 439.5 439.5
HTA Head Tube Angle (°) 65.5 65.5 65.5 65.5 65.5
STA Seat Tube Angle (°) 75.5 75.5 75.5 75.5 75.5
HT Head Tube (mm) 115.0 120.0 125.0 130.0 110.0
R Reach (mm) 420.0 440.0 460.0 480.0 400.0
S Stack (mm) 633.0 638.0 642.0 647.0 633.0
WB Wheel Base (mm) 1190.0 1212.0 1234.0 1256.0 1170.0
