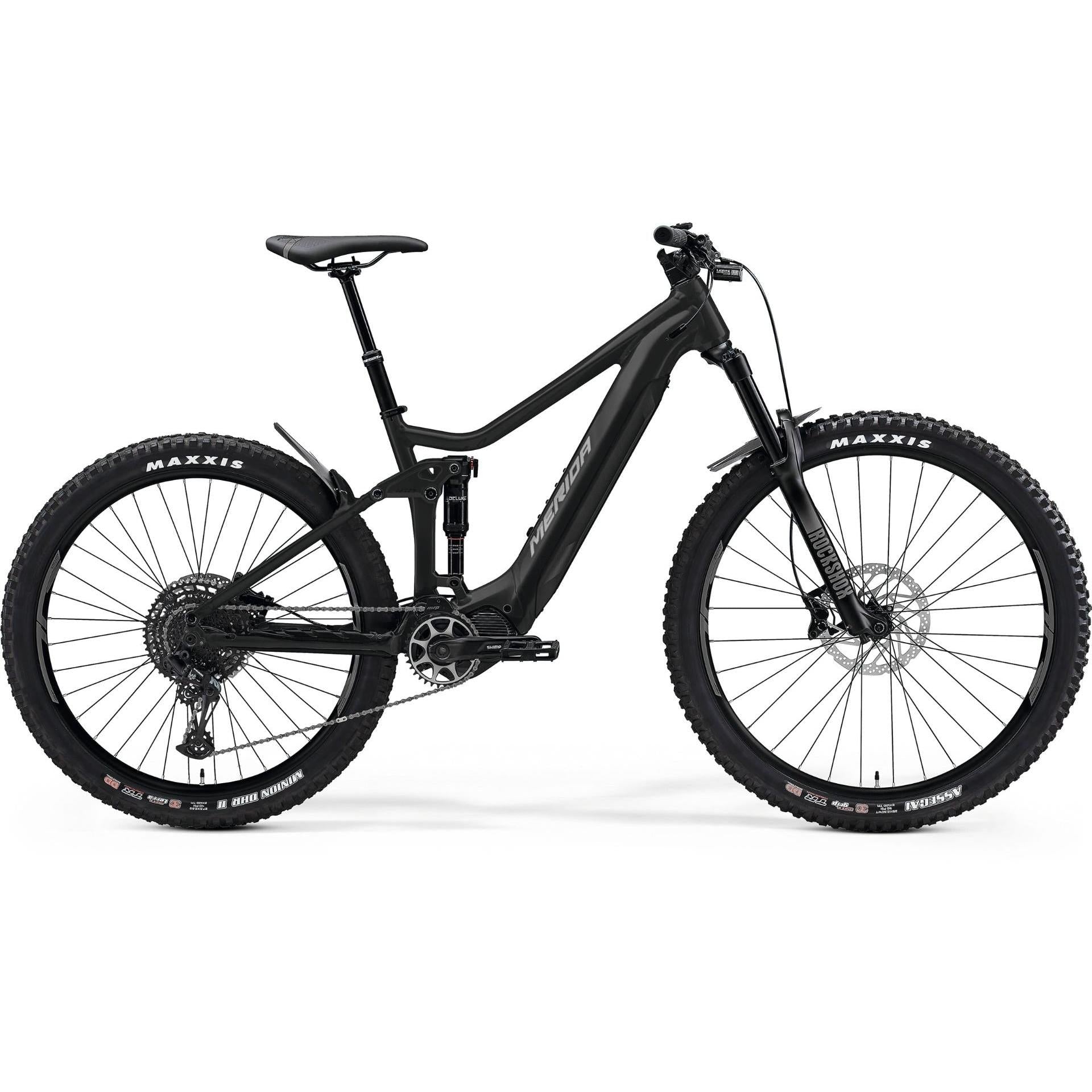

Merida eOne-Sixty 500 SE Dual Suspension Electric MTB Black/Silver
Up to 12 months interest free
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike comes with a complimentary free tune-up and safety check.
Please note that, in order to reduce production and delivery times, bike specifications are subject to change by the manufacturer without notice. Please be aware that these changes might not be reflected on product pages and images.
The Merida eOne-Sixty 500 SE Dual Suspension Electric MTB in Black/Silver is engineered for mountain biking enthusiasts seeking an exhilarating ride. With its powerful Shimano STePS motor and advanced suspension system, this e-bike excels in both climbing steep trails and descending with confidence. The bike's customizable support levels and high-quality components ensure a smooth, responsive experience on any terrain, making it the perfect companion for your outdoor adventures.
Merida eOne-Sixty 500 SE Dual Suspension Electric MTB Black/Silver
- Advanced Shimano STePS e-bike technology
- 85 Nm torque for swift acceleration
- RockShox 35 Gold RL Fork, 160mm travel
- Sram NX EAGLE seamless shifting
- Merida Comp TR Dropper Post included
Powerful Performance
The Merida eOne-Sixty 500 SE features a robust Shimano STePS motor that delivers 85 Nm of torque, allowing for effortless climbs and thrilling descents. This powerful performance ensures you can tackle any trail with ease and confidence.
Exceptional Suspension
Equipped with a RockShox 35 Gold RL Fork offering 160mm of travel, this e-MTB provides a smooth and controlled ride over rough terrain. The dual suspension system enhances stability and comfort, making it ideal for challenging trails.
Customizable Riding Experience
With the ability to adjust support levels via your smartphone, the Merida eOne-Sixty 500 SE allows you to tailor your ride to your preferences. This feature ensures that every ride is optimized for your unique style and terrain.
What is the Merida eOne-Sixty 500 SE Dual Suspension MTB used for?
The Merida eOne-Sixty 500 SE Dual Suspension MTB is designed for mountain biking, providing an exhilarating experience on both climbs and descents. Its advanced features make it suitable for tackling various terrains with ease.
Why choose the Merida eOne-Sixty 500 SE Dual Suspension MTB?
Choose the Merida eOne-Sixty 500 SE Dual Suspension MTB for its powerful Shimano STePS motor and exceptional suspension system. This e-MTB offers a customizable riding experience, ensuring you can conquer any trail confidently.
Who is the Merida eOne-Sixty 500 SE Dual Suspension MTB designed for?
The Merida eOne-Sixty 500 SE Dual Suspension MTB is designed for mountain biking enthusiasts who seek performance and versatility. It caters to riders looking for a reliable e-bike that excels in both climbing and downhill riding.
SKU | Merida24eOne-Sixty500SESEBlackSilver |
---|---|
Season | 2024 |
Sizing SKUs | XS: MEEB242400810, SM: MEEB242400811, MD: MEEB242400812, LG: MEEB242400813, XL: MEEB242400814 |
Click & Collect | Yes |
Shipped Nationally | Yes |
eBike Drive System | Mid Drive |
Motor Brand | Shimano |
Motor Model | STePS EP6 |
Motor Torque (Nm) | 85 Nm |
Motor/Drive Unit | Shimano EP6; 85Nm 25KPH |
Battery | Shimano EN806; 630Wh Shimano EN805 504Wh for XS only |
Battery Brand | Shimano |
Battery Size (Watt-Hours) | 630 W-h |
Battery Model | Shimano EN806 |
Display | Shimano SC-EN600 |
Assist Modes | 4 Modes |
Charger | Shimano EC-E6002; 2A charging current |
Colour | Black |
Frame | eONE-SIXTY LITE III; MAT aluminium; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube; |
Frame Material | Alloy |
Fork | Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset; 29x2.8" max WHS |
Fork Brand | RockShox |
Fork Material | Alloy |
Rear Travel | 150mm |
Rear Shock | Rock Shox Deluxe Select+; platform |
Speeds | 1 x 12 |
Front Gears | Single |
Groupset Brand | SRAM |
Groupset | SRAM NX Eagle |
Rear Gears | 12 Speed |
Crankset | Shimano FC-EM600; 165 mm for all sizes |
Pedals | VP VPE-537 |
Chain | Sram SX Eagle |
Brake Type | Hydraulic Disc Brake |
Brakes | Sram DB8; 4 piston |
Shifters | Sram NX EAGLE 12 |
Derailleur Rear | Sram NX Eagle |
Cassette | Sram PG-1210 Eagle; 10-50 ATC; 12 GER |
Wheel Size | 29" / 27.5" (Mullet Bike) |
Rims | MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
Hubs | F: Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt | Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt |
Handlebar | MERIDA EXPERT eTR; 780 WHB; 20 RHB |
Headset | MERIDA-8152 |
Stem | MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount |
Saddle | MERIDA COMP SL; V-mount |
Seatpost | MERIDA COMP TR; 30.9 DSP; 0 SSB; XS/S 100 SPT - M/L 125 SPT - XL 150 SPT |
Dropper Post | Yes |
Merida One Forty Sizing Chart

Legend
ST Seat Tube
TT Top Tube
CS Chain Stay Length
HTA Head Tube Angle
STA Seat Tube Angle
BD Bottom Bracket Drop
HT Head Tube
FL Fork Length
R Reach
S Stack
WB Wheel Base
Size |
XS | SM | MD | LG | XL | Wheel Size | 29" / 27.5" (Mullet Bike) | 29" / 27.5" (Mullet Bike) | 29" / 27.5" (Mullet Bike) | 29" / 27.5" (Mullet Bike) | 29" / 27.5" (Mullet Bike) | Frame Size | XS | SM | MD | LG | XL | ST Seat Tube (mm) | 405.0 | 415.0 | 430.0 | 450.0 | 470.0 | TT Top Tube (mm) | 563.0 | 584.0 | 605.0 | 626.0 | 647.0 | CS Chain Stay Length (mm) | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 | HTA Head Tube Angle (°) | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 | STA Seat Tube Angle (°) | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | HT Head Tube (mm) | 110.0 | 115.0 | 120.0 | 125.0 | 130.0 | R Reach (mm) | 400.0 | 420.0 | 440.0 | 460.0 | 480.0 | S Stack (mm) | 633.0 | 633.0 | 638.0 | 642.0 | 647.0 | WB Wheel Base (mm) | 1170.0 | 1190.0 | 1212.0 | 1234.0 | 1256.0 |
