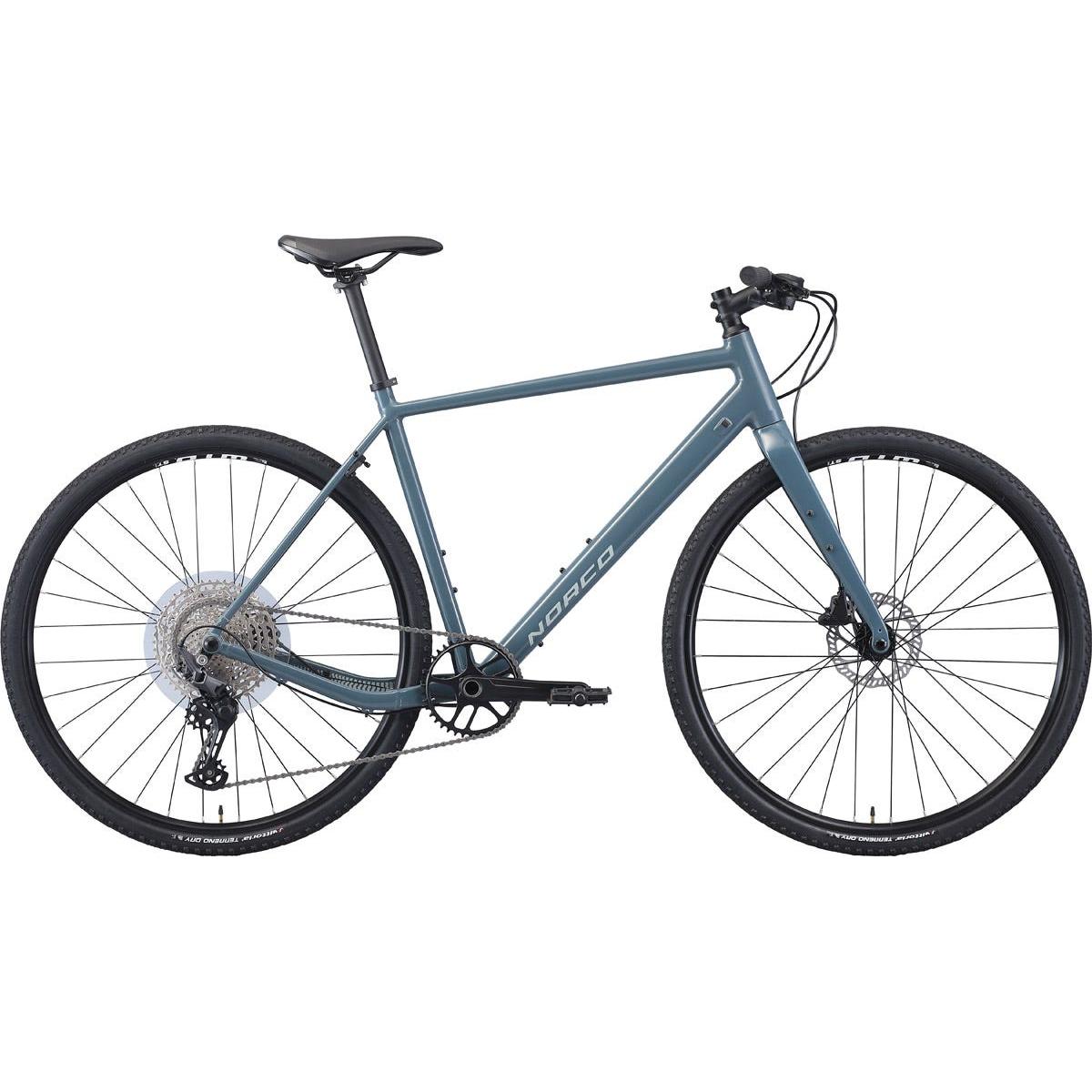

Norco Search XR A Flat Bar Gravel Bike Blue/Grey

Out of stock
Only %1 left
Request a Price Beat

Up to 12 months interest free

Features

Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up
Every bike come with a complimentary free tune-up and safety check.

Please note that, in order to reduce production and delivery times, bike specifications are subject to change by the manufacturer without notice. Please be aware that these changes might not be reflected on product pages and images.

Please note that the image is for colourway purposes only. Please refer to specifications for further details.

The Norco Search XR A Flat Bar Gravel Bike is a truly unique bike built for any adventure from the gravel to your work commute and everywhere in between. Capability starts with the X6 aluminium frame with internal cable routing and a geometry that balances off-road performance with comfort thanks to a longer and slacker design. The thinned seat tube and top tube" bent chain stays and optimised fork ensures maximum comfort which will help reduce fatigue so that you can get the most out of every ride. Everything just clicks with this bike to create a versatile ride" with a mid-modulus carbon fork" front & rear thru-axles" BB shell" oversize downtube and chainstays for lateral stiffness which ensures maximum power transfer and control on rough surfaces.

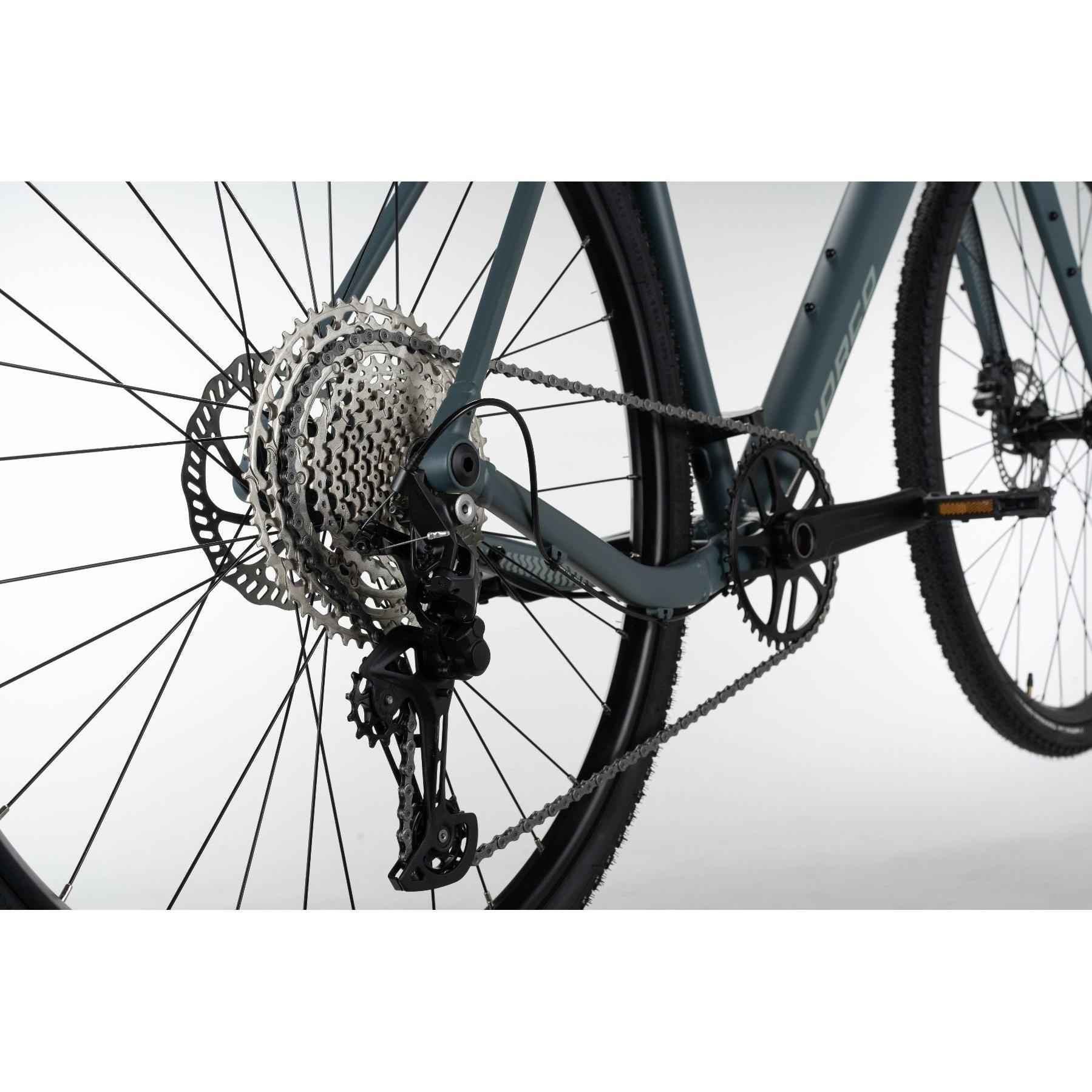

The design ticks all of the boxes and so do the specs. The 1x11 speed Shimano Deore Drivetrain is smooth and simple for reliably great performance on every ride. Matched with Tektro hydraulic disc brakes for solid braking control compared to traditional rim brakes. While the WTB ST i23 rims are matched with Vittoria Terreno Dry 38mm Tyres which are built for cyclo cross with a 'fish scale tread' for a fast ride that offers traction when cornering and braking. The finishing touch is the ability to customise this bike" with multiple bottle cage mounts" stealth rack and fender mounts" as well as a custom removable fender bridge mount. The Norco Search XR A Flat Bar Gravel Bike is the do it all bike which is ready for any adventure of your choice.

Features

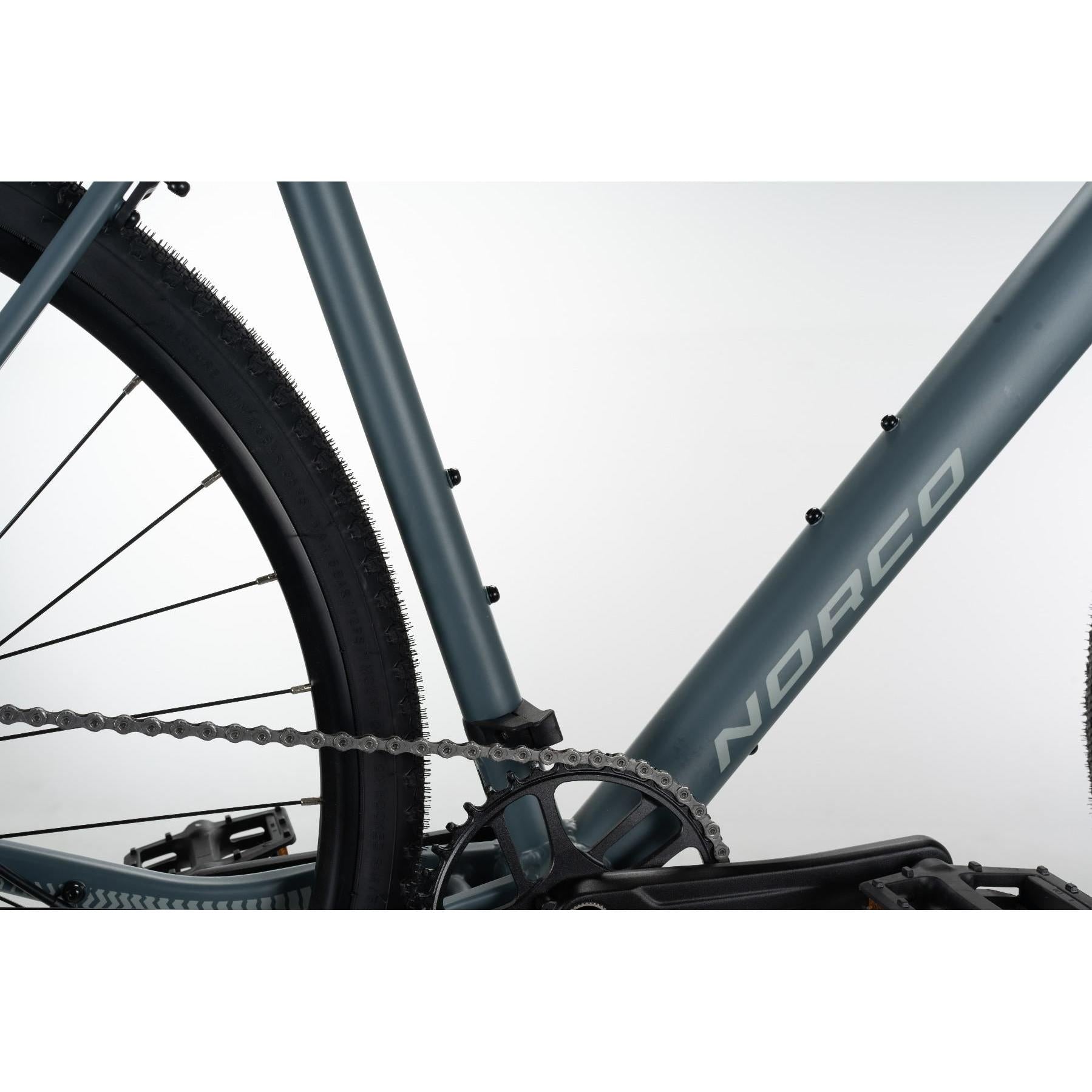

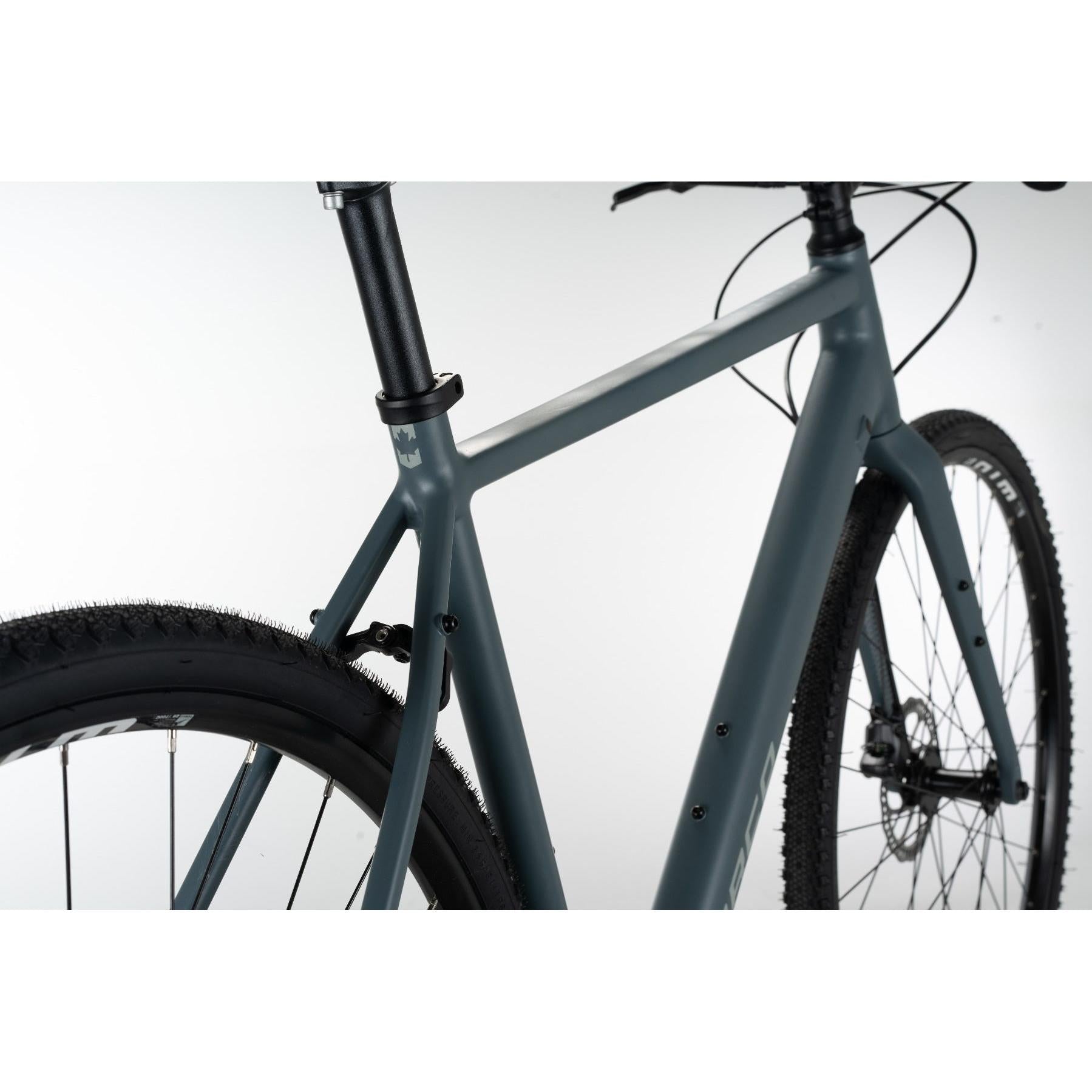

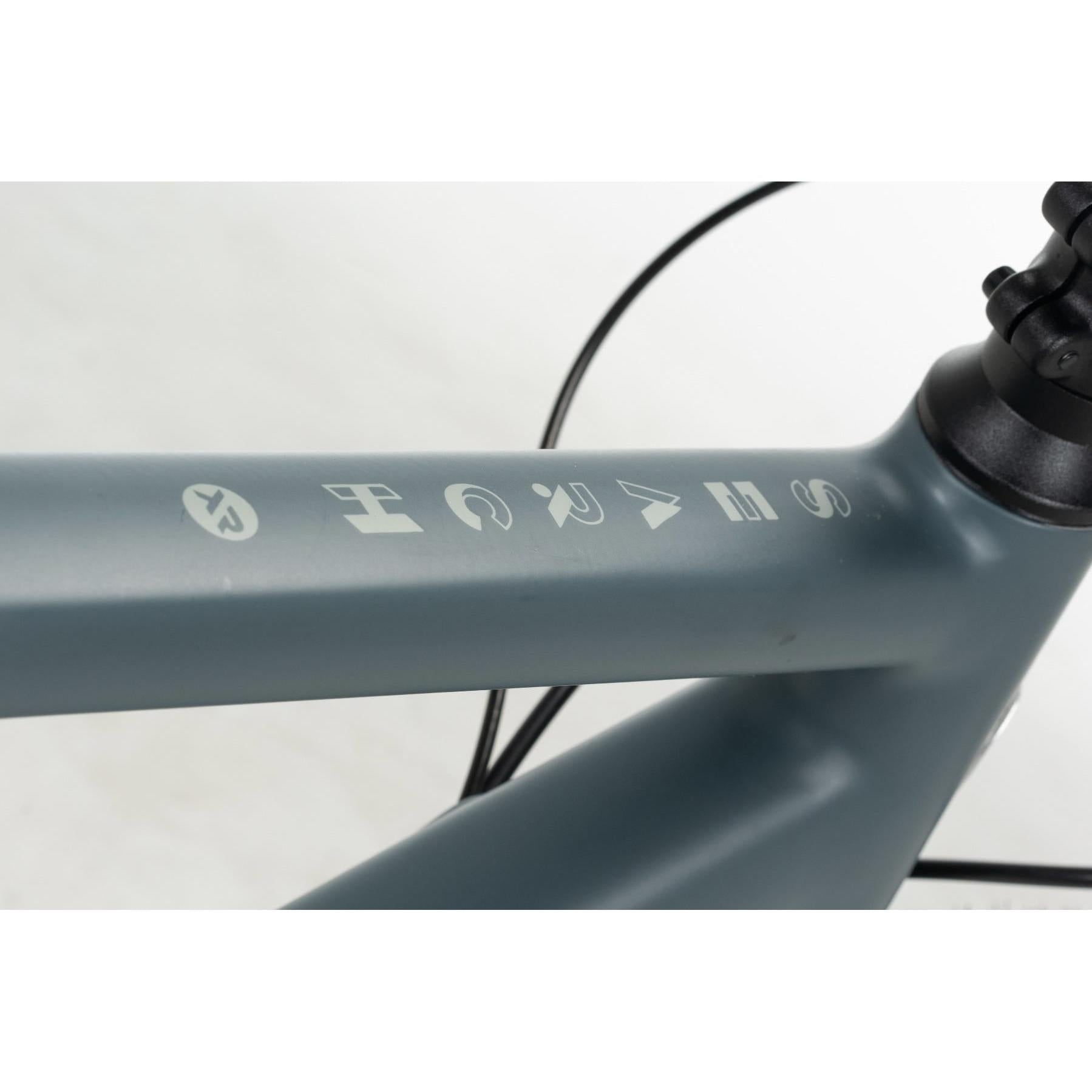

Search Alloy Frame: Smooth welded" lightweight aluminium frame creates a robust" elegant looking adventure rig. Bent chain stays" thinned seat tube and top tube" and optimized fork designs maximize comfort and reduce rider fatigue.

Built for Adventure: Designed to excel on rougher surfaces" Search XR geometry is a little slacker and longer than conventional road bikes for a confident ride.

Versatility & Power Transfer: Front and rear thru-axles" oversized downtube" BB shell and chainstays deliver lateral stiffness for maximum power transfer and control over rough terrain.

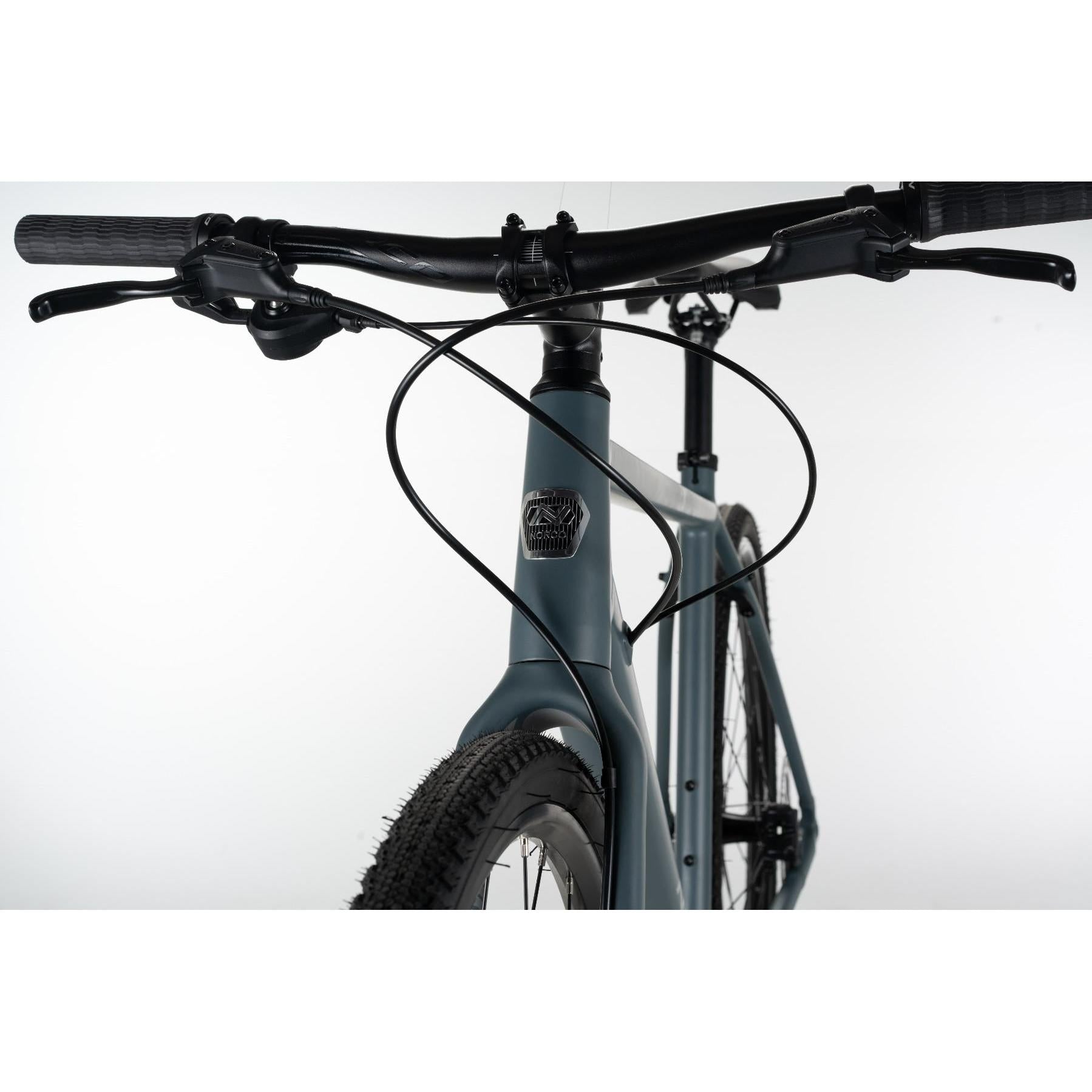

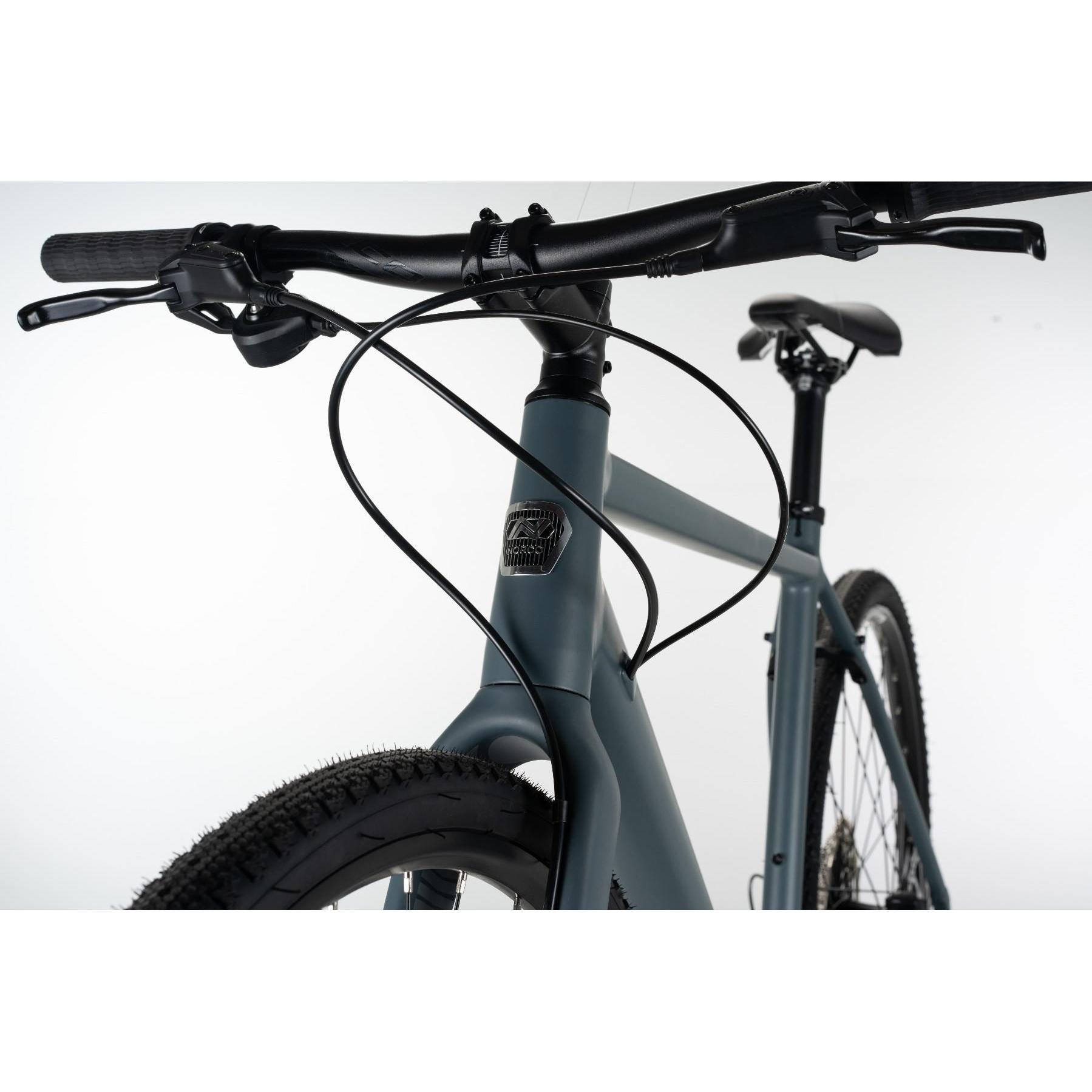

Internal Routing: Internal cable routing with adaptable port covers keeps cables tight and secure and prevents water from‚Øentering the frame. The Search XR is also compatible with a wide range of configurations such as 1x or 2x drivetrains.

Multiple Configurations: The Search XR aluminum models are spec‚d with flared drop bars" with an available a flat bar model" and the Search XR Suspension features a 50mm gravel-specific SR Suntour suspension fork.

Tyre Clearance: Generous tire clearance lets you customize your Search XR to the type of ride that best suits you" or the ride your planning on any given day. Larger tires provide more comfort and control on paved surfaces" and greater traction on off-road or gravel excursions. See Geo Chart for tire clearance details.

More Information
SKU 21NorcoSearchRAFBBlueGrey
Season 2021
Sizing SKUs SM: NOAD2106311823, MD: NOAD2106311824, LG: NOAD2106311825, XL: NOAD2106311826, XXL: NOAD2106311827
Click & Collect Yes
Colour Blue
Frame Alloy
Frame Material Alloy
Fork Mid-Modulus Carbon
Fork Material Carbon
Speeds 1 x 11
Front Gears Single
Groupset Brand Shimano
Groupset Shimano Deore
Rear Gears 11 Speed
Crankset Prowheel DMA-40T-TT 2PC.
Pedals City
Chain KMC X11
Brake Type Hydraulic Disc Brake

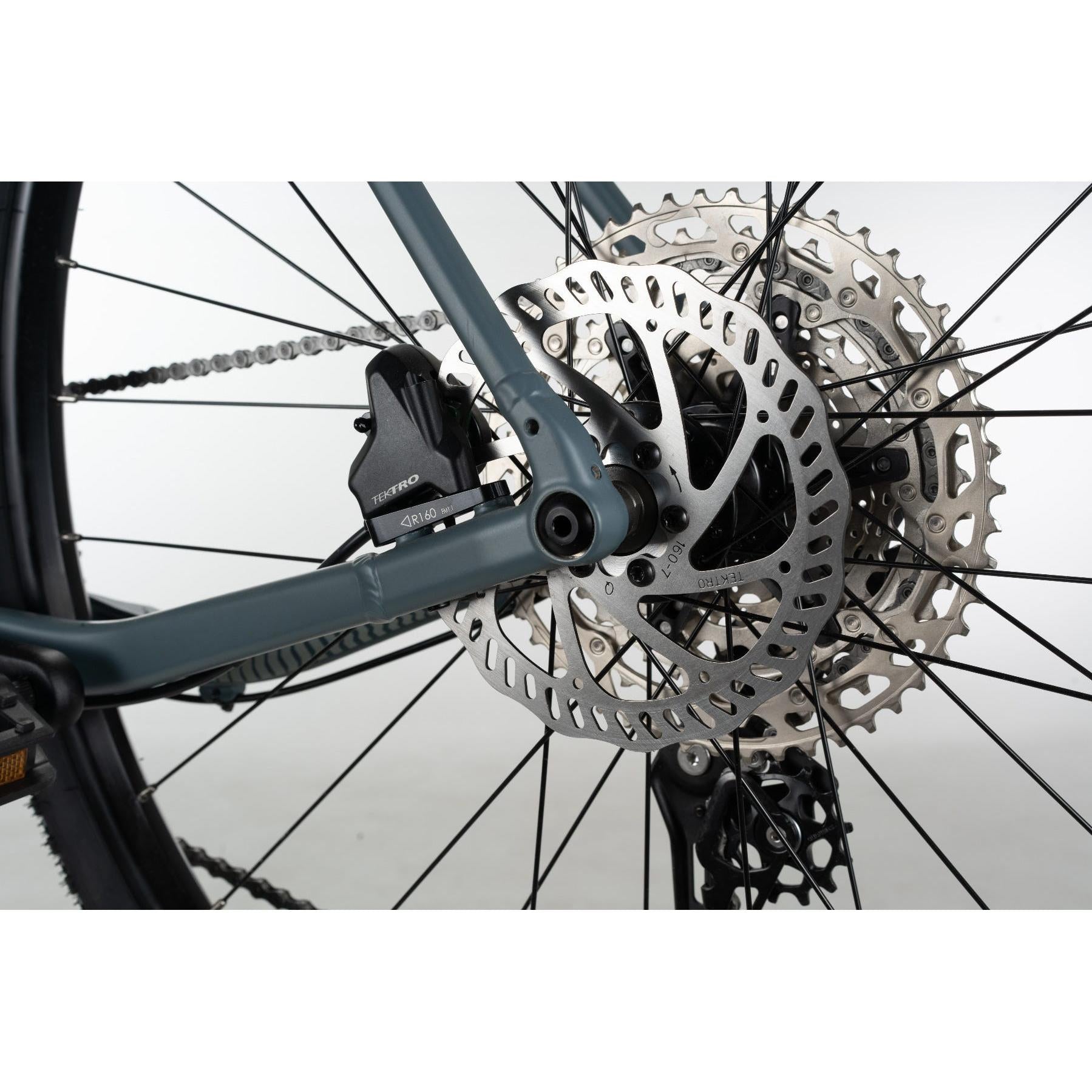

Brakes Tektro HD-R280 Hydraulic Disc
Shifters Shimano Deore SL-M5100 11spd
Brake Levers Tektro 3-Finger Hydraulic, Reach Adjust
Derailleur Rear Shimano Deore SL-M5100
Cassette Shimano Deore CS-M5100, 11-51T, 11 Speed
Wheel Size 700c
Tyres Vittoria Terreno Dry 38mm
Rims WTB ST i23 TCS 2.0 32H, 650b (45.5, 48), 700c (50.5-60.5)
Hubs Alloy 12x100mm, 6 Bolt
Spokes Sapim Leader Stainless Black
Bottom Bracket Sealed Bearing PF86
Handlebar Aluminum, 620mm (50, 53), 640mm (55, 58, 60), 15mm Rise
Grips Lock On Grip
Stem Aluminum
Saddle Selle Royal Vivo, Mag Rails
Seatpost Aluminum, 27.2mm

Norco Search Sizing Chart

Rider's Height (cm)
145
150
155
160
165
170
175
180
185
190
195
XS
SM
MD
LG
XL
XXL

This is an accurate estimate, and every new bike comes with a free professional bike fit when you click & collect in store, plus all bikes have a 30 day Perfect Ride Guarantee.

Road Bike Geometry Diagram

Legend

ST Seat Tube

TT Top Tube

CS Chain Stay Length

HTA Head Tube Angle

STA Seat Tube Angle

BD Bottom Bracket Drop

HT Head Tube

FL Fork Length

R Reach

S Stack

WB Wheel Base

Size

SM MD LG XL XXL
Wheel Size 700c 700c 700c 700c 700c
Frame Size 50.5 53 55.5 58 60.5
ST Seat Tube (mm) 460.0 490.0 520.0 550.0 580.0
TT Top Tube (mm) 578.0 591.0 608.0 624.0 631.0
CS Chain Stay Length (mm) 422.5 422.5 425.0 425.0 425.0
HTA Head Tube Angle (°) 70.0 70.0 70.0 70.5 70.5
STA Seat Tube Angle (°) 74.25 73.75 73.25 73.0 72.75
HT Head Tube (mm) 120.0 137.5 155.0 177.5 197.5
R Reach (mm) 425.0 429.0 435.0 442.0 441.0
S Stack (mm) 543.0 557.0 574.0 594.0 613.0
WB Wheel Base (mm) 1063.0 1073.0 1089.0 1099.0 1104.0
