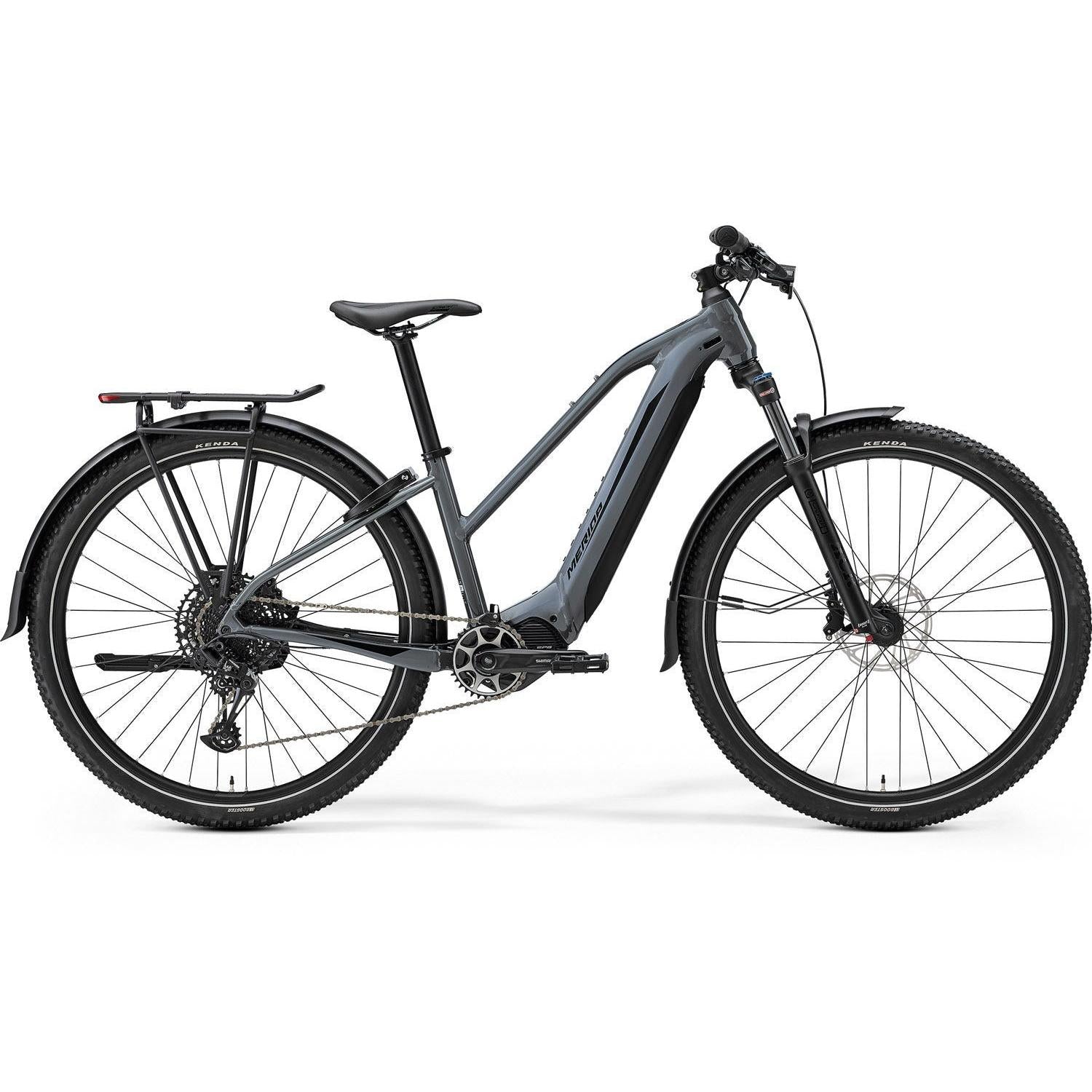

Merida eBig.Tour 675 EQ Electric Hardtail Cool Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 75 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

750Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eBig.Tour 675 EQ in Cool Grey/Black is the ultimate electric hardtail designed for both urban commuting and off-road adventures. Featuring a powerful Shimano EP6 drive unit and a robust 750 Wh battery, this e-bike ensures a smooth and efficient ride. Its low-step-through frame allows for easy mounting and dismounting, while the SR Suntour suspension fork and chunky tires provide comfort and stability on various terrains. With a 12-speed SRAM drivetrain, tackling hills becomes effortless, making it an ideal choice for riders seeking versatility and performance.

Key Features

Shimano EP6 drive unit for smooth rides
750 Wh battery for extended range
Low-step-through frame for easy access
SR Suntour suspension fork for comfort
12-speed SRAM drivetrain for hill climbing

Specifications

Product Overview

Product

Merida eBig.Tour 675 EQ Electric Hardtail Cool Grey/Black

Brand

Merida

Parent SKU

Merida24eBig.Tour675EQCoolGreyBlack

Size SKUs

SM: MEEB242400875
MD: MEEB242400876
LG: MEEB242400877
XL: MEEB242400878

Matrix Barcodes

SM: 4711256462424
MD: 4711256462417
LG: 4711256462400
XL: 4711256462394

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Trapeze

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Front Travel

100mm

Motor and Battery System

Motor Brand

Shimano

Motor

25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

750

Max. Range (KMs)

Display

Shimano SC-EN600

Build

Frame

eBIG.TOUR LITE IV; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube

Fork

Suntour XCR34 LOR DS; Air Boost; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Headset

MERIDA-8155 (for the steerer 1-1/8"~1.5")

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable, 90 mm all sizes

Pedals

VP VPE-537

Saddle

MERIDA EXPERT TK; V-mount

Seat Post

MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC II; 25 IWR; MAT aluminium

Hubs

Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt:Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 36 SPH; 6 bolt

Tyres

KENDA Booster; 29x2.2"; wire:KENDA Booster; 29x2.2"; wire

Spokes

Black stainless

Groupset

Crankset

SAMOX EMA04; 34 ATC

Chain

Sram SX Eagle

Brakes

Sram DB8; 4 piston

Front Rotor

Sram CenterLine; 180mm

Rear Rotor

Sram CenterLine; 180mm

Shifters

Sram NX EAGLE 12

Rear Derailleur

Sram NX Eagle

Frequently Asked Questions

What is the Merida eBig.Tour 675 EQ Hardtail used for?

The Merida eBig.Tour 675 EQ Hardtail is used for both urban commuting and off-road adventures. Its versatile design allows riders to navigate city streets and tackle dirt trails with ease.

Why choose the Merida eBig.Tour 675 EQ Hardtail?

Choose the Merida eBig.Tour 675 EQ Hardtail for its perfect blend of practicality and performance. With a powerful drive unit, ample battery life, and robust features, it meets the needs of diverse riding experiences.

Who is the Merida eBig.Tour 675 EQ Hardtail designed for?

The Merida eBig.Tour 675 EQ Hardtail is designed for riders seeking versatility in their e-bike. It caters to commuters and adventure enthusiasts alike, making it suitable for a wide range of cyclists.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eBig.Tour 675 EQ Electric Hardtail Cool Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Urban Practicality

The Merida eBig.Tour 675 EQ is designed for everyday city riding, making it perfect for commuting. Its low-step-through frame and integrated battery enhance convenience and accessibility.

Off-Road Capability

Equipped with chunky tires and a suspension fork, this e-bike excels on dirt trails and rugged paths. It combines urban functionality with the thrill of off-road exploration.

Safety and Control

With powerful yet controllable brakes, the eBig.Tour 675 EQ ensures rider safety in various conditions. The 12-speed SRAM drivetrain provides smooth gear transitions, enhancing overall control.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eBig.Tour 675 EQ Electric Hardtail Cool Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

636

640

650

659

Reach

411

427

445

462

Top Tube Length

588

605

625

645

Seat Tube Length

380

430

480

530

Seat Tube Angle

74.5

Fork Length

527

Head Tube Length

115

120

130

140

Head Tube Angle

67.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

630

653

665

677

Minimum Seat Height

Maximum Seat Height
