$1000 Off Full Price

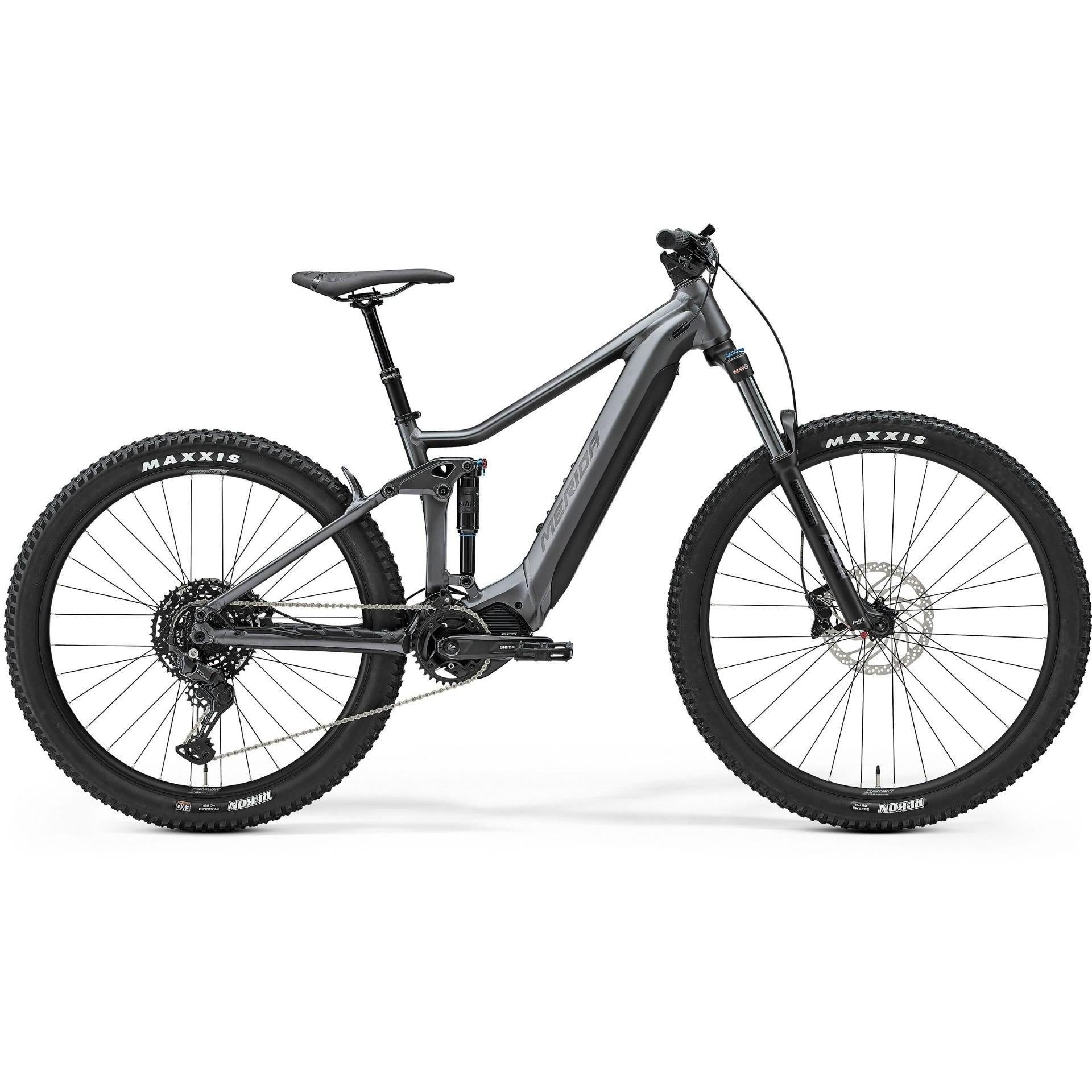

Merida eOne-Forty 400 SE Dual Suspension Electric MTB Silk Dark Silver/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 63 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

140mm Front Travel / 130mm Rear

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Forty 400 SE Electric Mountain Bike is a cutting-edge blend of dual-suspension performance and electric power, tailored for trail enthusiasts. With a robust Shimano EP6 motor and a 630Wh battery, this bike excels in navigating challenging terrains, offering a playful yet stable ride thanks to its advanced suspension system and lightweight aluminum frame.

Key Features

Shimano EP6 motor with 85Nm torque
630Wh battery for extended rides
140mm Suntour XCR3 air fork
Durable lightweight aluminum frame
Mullet design for responsive handling

Specifications

Product Overview

Product

Merida eOne-Forty 400 SE Dual Suspension Electric MTB Silk Dark Silver/Black

Brand

Merida

Parent SKU

Merida24eOne-Forty400SESESilkDarkSilverBlack

Size SKUs

SM: MEEB242400856
MD: MEEB242400857
LG: MEEB242400858

Matrix Barcodes

SM: 4711256462615
MD: 4711256462608
LG: 4711256462592

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Silver

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

140mm

Rear Travel

130mm

Motor and Battery System

Motor Brand

Shimano

Motor

25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Max. Range (KMs)

Display

Shimano SC-EN600

Build

Frame

eONE-FORTY LITE III; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube

Fork

Suntour XCR34 LOR DS; Air Boost; 140mm; Tapered; 51mm fork offset; 29x2.4" max WHS

Shock

SUNTOUR RS-EDGE-TR-LO-R8-M6; lockout

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Headset

MERIDA-8152

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; GoPro & Supernova mount, 40 mm all sizes

Pedals

VP VPE-537

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; M 100 SPT - L/XL 125 SPT - XXL 150 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock:Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

MAXXIS REKON; 29x2.4"; wire; DUAL:MAXXIS REKON; 27.5x2.6"; wire; EXO

Spokes

Black stainless

Groupset

Crankset

Shimano CRE70-B; 34 ATC

Chain

Shimano LG500

Brakes

Shimano MT420; 4 piston : Shimano M4100; 2 piston

Front Rotor

Shimano RT30; 203 mm

Rear Rotor

Shimano RTEM300; 180 mm

Shifters

Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000 ; GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne-Forty 400 SE Dual Suspension MTB used for?

The Merida eOne-Forty 400 SE Dual Suspension MTB is used for tackling challenging trails and enjoying exhilarating rides in various terrains. Its powerful motor and advanced suspension make it perfect for both climbing and descending.

Why choose the Merida eOne-Forty 400 SE Dual Suspension MTB?

Choose the Merida eOne-Forty 400 SE Dual Suspension MTB for its exceptional performance, durability, and innovative design. It combines the best features of electric and dual-suspension mountain bikes, ensuring a thrilling riding experience.

Who is the Merida eOne-Forty 400 SE Dual Suspension MTB designed for?

The Merida eOne-Forty 400 SE Dual Suspension MTB is designed for adventurous riders seeking a capable electric mountain bike. It caters to those who want to conquer diverse trails with confidence and enjoy the benefits of electric assistance.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Forty 400 SE Dual Suspension Electric MTB Silk Dark Silver/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor Performance

The Shimano EP6 motor delivers an impressive 85Nm of torque, making steep climbs and rough terrains manageable. This powerful performance allows riders to tackle challenging trails with confidence and ease.

Advanced Suspension System

Equipped with a 140mm Suntour XCR3 air fork and Suntour RS Edge shock, the eOne-Forty 400 SE absorbs bumps and impacts effectively. This advanced suspension ensures a smooth ride, enhancing comfort and control on any trail.

Versatile Mullet Design

The unique mullet design features a 29-inch front wheel and a 27.5-inch rear wheel, providing a perfect balance of speed and agility. This design enhances maneuverability, making it ideal for both technical descents and swift climbs.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eOne-Forty 400 SE Dual Suspension Electric MTB Silk Dark Silver/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

622

627

631

Reach

410

430

450

Top Tube Length

561

581

603

Seat Tube Length

405

415

430

Seat Tube Angle

76.5

Fork Length

551

Head Tube Length

110

115

120

Head Tube Angle

66.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

729

730

727

Minimum Seat Height

Maximum Seat Height
