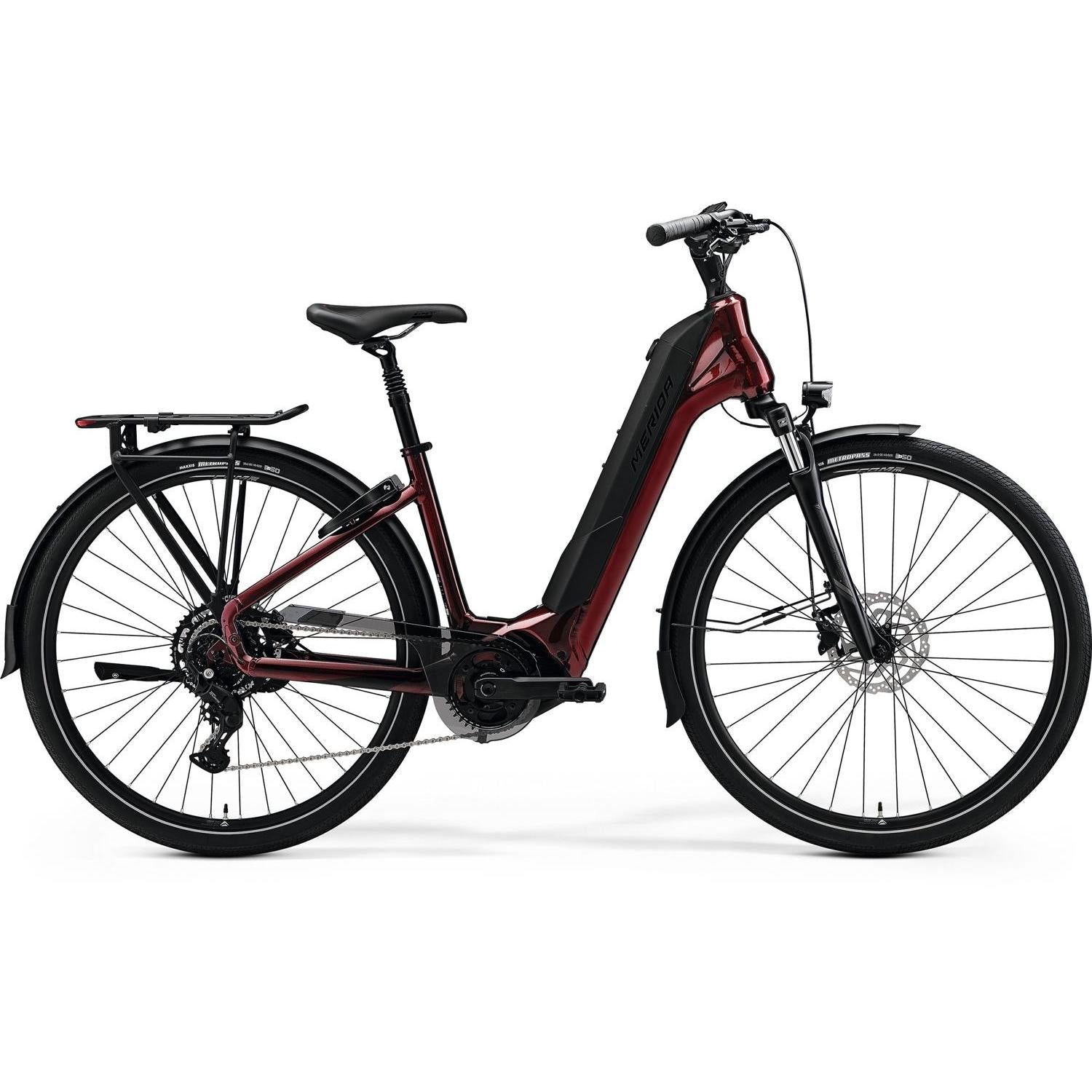

Merida eSpresso City 400 EQ Electric Hybrid Bike 504Wh Battery Burgundy Red/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 59 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

under 100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eSpresso City 400 EQ in Burgundy Red/Black is a versatile electric hybrid bike ideal for urban commuting and leisure rides. It features a robust aluminum frame, reliable Shimano components, and a powerful Shimano EP6 motor, ensuring a smooth and efficient ride. This makes it perfect for navigating city streets and enjoying longer journeys.

Key Features

Shimano EP6 motor with 85Nm torque
504Wh battery for extended range
Suntour NEX E25 fork with 63mm travel
Shimano 1x9 drivetrain for smooth shifting
Shimano hydraulic disc brakes for safety

Specifications

Product Overview

Product

Merida eSpresso City 400 EQ Electric Hybrid Bike 504Wh Battery Burgundy Red/Black

Brand

Merida

Parent SKU

Merida25eSPRESSOCITY400EQBurgundyRedBlack

Size SKUs

XS: MEEB2500212
SM: MEEB2500213
MD: MEEB2500214
LG: MEEB2500215
XL: MEEB2500216

Matrix Barcodes

XS: 25002120212
SM: 25002130213
MD: 25002140214
LG: 25002150215
XL: 25002160216

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Step-Through

Colour

Red

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

under 100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP6; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano EN805-L; 504Wh

Max. Range (KMs)

Display

Shimano SC-EN500

Approved for sale in NSW

true

Declared Article Number (NSW)

ULL-104164-EA

Build

Frame

eSPRESSO CITY LITE III MAT aluminium 700x50C with fender max WHS 135x9 AST internal

Fork

Suntour NEX E25; Coil; 63 STR; 700x52C max WHS

Handlebars

MERIDA EXPERT; MAT aluminium; 640 WHB; 35 RHB

Headset

MERIDA-8254

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT; MAT aluminium; 31.8 DSH; adjustable

Pedals

VP VPE-891

Saddle

MERIDA EXPERT CT; V-mount

Seat Post

JD-SP79; 30.9 DSP; 15 SSB; 40 SST

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

MERIDA COMP TK; 20 IWR; MAT aluminium

Tyres

F: ETB00449900 M2028eP | R:

Groupset

Crankset

MERIDA EXPERT TK; 165mm

Chain

Shimano LG500

Brakes

Shimano MT200 2 piston

Front Rotor

Shimano RT10; 180 mm

Rear Rotor

Shimano RTEM300M; 180 mm

Rear Derailleur

Shimano CUES U4000

Cassette

9 Speed

Frequently Asked Questions

What is the Merida eSpresso City 400 EQ used for?

The Merida eSpresso City 400 EQ is a robust electric hybrid bike primarily designed for urban commuting. It can handle city streets effectively while also offering capabilities for exploring new paths and light trails.

Why choose the Merida eSpresso City 400 EQ?

This bike stands out for its durable aluminium frame and advanced Shimano components, which ensure a smooth and efficient ride. The powerful Shimano EP6 also makes it super versatile thanks to the hill-busting 85Nm of torque.

Who is the Merida eSpresso City 400 EQ designed for?

It is designed for urban commuters and riders seeking a versatile electric bike with a comfortable upright riding position. It is also capable of handling occasional off-road excursions or exploring varied terrain with ease.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eSpresso City 400 EQ Electric Hybrid Bike 504Wh Battery Burgundy Red/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Smooth Suspension Fork

The Suntour NEX E25 coil fork with 63mm travel ensures a comfortable ride on various terrains, absorbing bumps and providing stability. This feature enhances the overall riding experience, making it ideal for city commutes and leisurely rides.

Reliable Drivetrain

Equipped with a Shimano EP6 motor and a 1x9 drivetrain, the Merida eSpresso City 400 EQ offers smooth and dependable shifting. This reliability is perfect for urban commuting, allowing riders to tackle different inclines with ease.

Effective Braking System

The Shimano hydraulic disc brakes provide excellent stopping power in all conditions, enhancing safety and control. This feature ensures that riders can confidently navigate through busy city streets or challenging terrains.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Wheel Size

700c

Stack

656

661

665

684

Reach

386

399

418

452

Top Tube Length

580

595

615

655

Seat Tube Length

380

430

480

580

Seat Tube Angle

73.5

Fork Length

475

Head Tube Length

170

175

180

200

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

413

412

411

Minimum Seat Height

Maximum Seat Height
